S-IIDecals - Monday, July 6, 2009 22:04

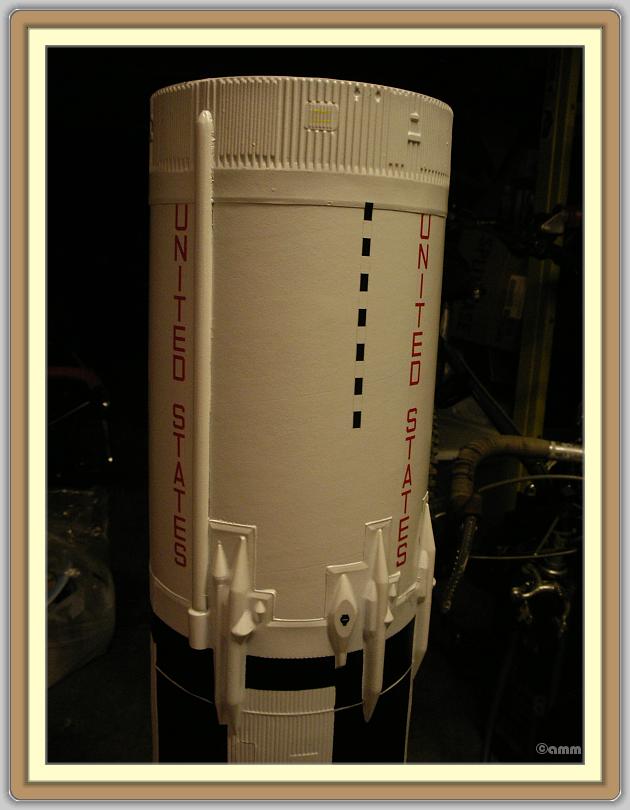

Vertical motion target (black "dashed" line), LH2 fill and drain fairing detail, and markings on the S-II (this is approximately at Position II). Note also the faint "Personnel Access" near the top of the stage, in pale yellow.
